*Thin design
Mounting height is only 1.8mm for normal type, and 1.4mm for off-set type.
*Low insertion force
With the contact of unique construction featuring spring action, its insertion into housing is easy with low insertion force, yet with clear click feeling.

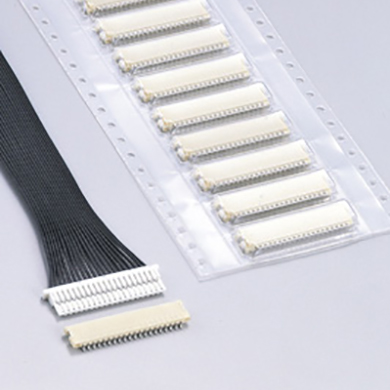

| Product Profile |
| Series | SHL connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, Thin type |
| Specification |
| Pitch | 1.0 mm |
| Current rating | 1.0A (AWG#28) |
| Voltage rating | 50V |
| PC board mounting direction | Side entry |
