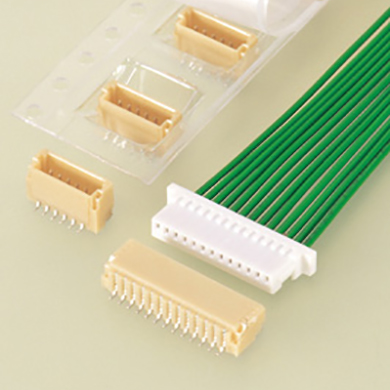

*Compact, low profile design
*Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
*The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires.
| Product Profile |
| Series | SH connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, Compact type |
| Specification |
| Pitch | 1.0 mm |
| Current rating | 1.0A (AWG#28) |
| Voltage rating | 50V |
| PC board mounting direction | Top entry, Side entry |
