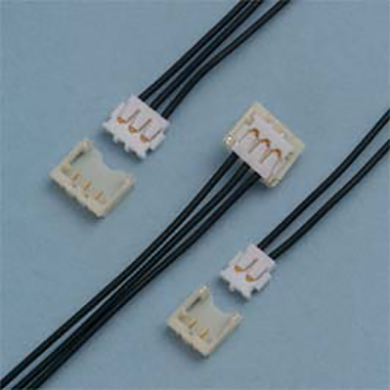

This connector is compact and low profile type, height: 1.4mm and width 4.3mm, 1.2mm pitch wire-to-board connector.
| Product Profile |
| Series | ACH connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, Compact type, Low-profile type |
| Feature | For LED lamp |
| Specification |
| Pitch | 1.2 mm |
| Current rating | 2A/1to3-circuit (AWG#28) 1.5A/4,5-circuit (AWG#28) |
| Voltage rating | 50V |
| PC board mounting direction | Top entry |
