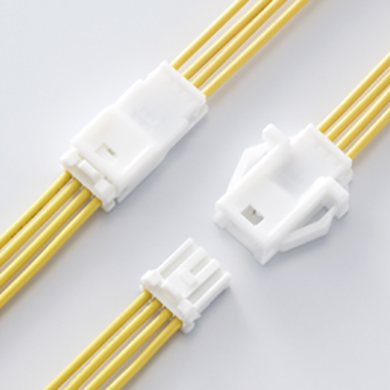

This connector is a 2.0mm pitch wire-to-wire connector, having incomplete mating prevention mechanism.
| Product Profile |
| Series | PNI connector (W to W) |
| Category | Wire to Wire Connectors |
| Type | Crimp style, With secure locking device Inertial lock structure |
| Feature | With secure locking device, With an inertia lock mechanism |
| Specification |
| Pitch | 2.0 mm |
| Current rating | 3A (AWG#22) |
| Voltage rating | 100V |
| PC board mounting direction | W to W |
