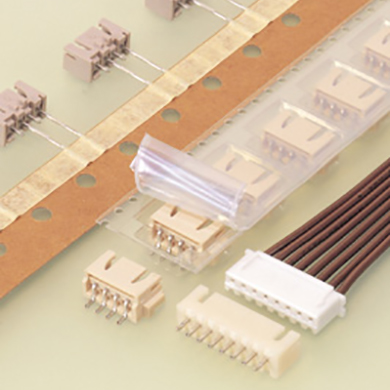

This connector was developed based on the high reliability and versatility of our NH series connectors. The connector is very small with mounting height of 9.8mm.
| Product Profile |
| Series | XH connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, Shrouded header type |
| Specification |
| Pitch | 2.5 mm |
| Current rating | 3A (AWG#22) |
| Voltage rating | 250V |
| PC board mounting direction | Top entry, Side entry |
