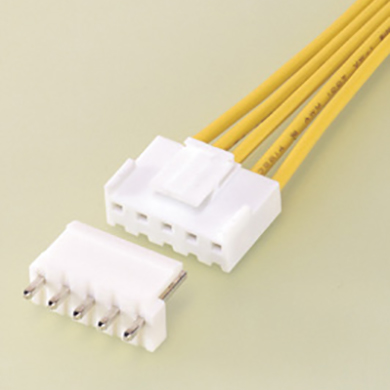

This small, field-proven connector for PC boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.
| Product Profile |
| Series | VH connector |
| Category | Wire to Board Crimp style Connectors |
| Type | Disconnectable type Crimp style, Compact type, With locking device |
| Feature | With secure locking device |
| Specification |
| Pitch | 3.96 mm |
| Current rating | 10A (AWG#16) |
| Voltage rating | 250V |
| PC board mounting direction | Top entry, Side entry |
